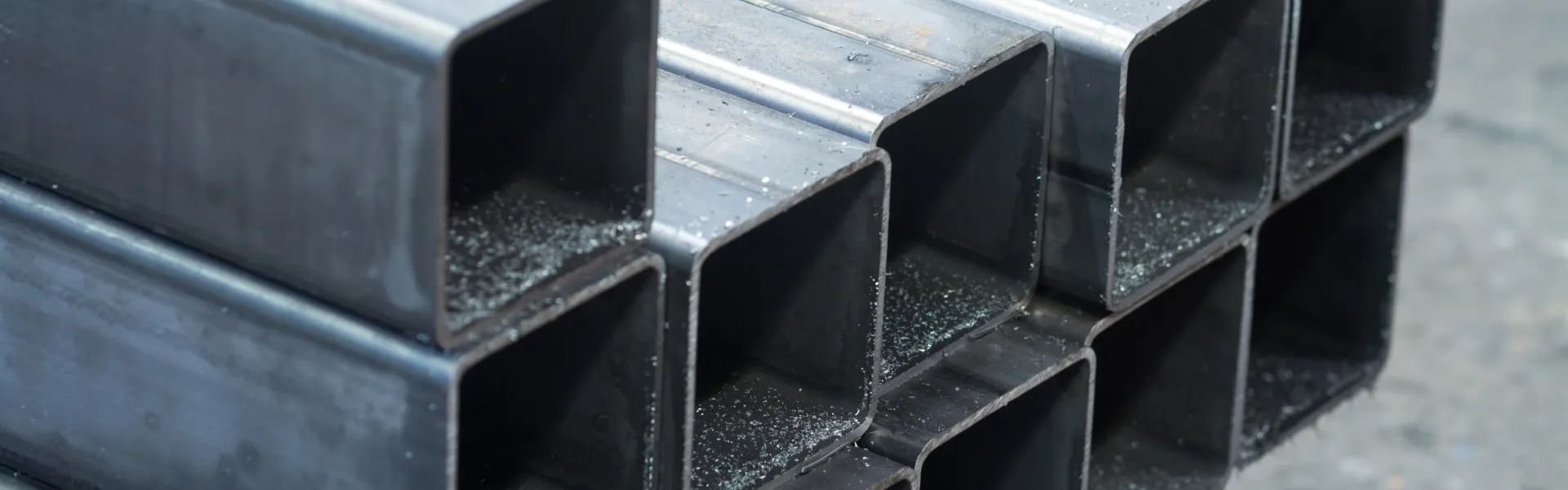

ERW Black Square Pipes
High-quality MS square pipes for structural applications, furniture, and fabrication
Overview
Satyam Steel's ERW (Electric Resistance Welded) Black Square Pipes are manufactured using advanced welding technology and premium quality mild steel. These square pipes offer excellent structural strength, uniform dimensions, and superior weld quality, making them ideal for construction frameworks, furniture manufacturing, gates, grills, and general fabrication work.
Why Choose Our ERW Black Square Pipes
Structural Strength
Excellent load-bearing capacity and structural integrity for demanding applications.
Uniform Dimensions
Consistent sizing with tight tolerances for easy installation and fabrication work.
Superior Weld Quality
ERW process ensures strong, consistent welds throughout the entire length of the pipe.
Wide Size Range
Available in multiple sizes from 20x20mm to 72x72mm to meet diverse project requirements.
Cost-Effective Solution
Competitive pricing without compromising on quality, offering excellent value for money.
Product Specifications
Complete size and weight specifications for ERW Black Square Pipes. All measurements are in millimeters and weights in kg/6m length.
| SIZE | Thickness | WT/PCS (2GN) |
|---|---|---|
| 20x20 | 1.0 | 4 |
| 20x20 | 1.60 | 6 |
| 20x20 | 2.00 | 7.5 |
| 25x25 | 1.00 | 4.5 |
| 25x25 | 1.20 | 5.5 |
| 25x25 | 1.40 | 6.5 |
| 25x25 | 1.60 | 7.5 |
| 25x25 | 2.00 | 9 |
| 25x25 | 2.50 | 11.5 |
| 32x32 | 1.10 | 6.5 |
| 32x32 | 1.40 | 8 |
| 32x32 | 1.60 | 9.5 |
| 32x32 | 2.00 | 12 |
| 32x32 | 2.50 | 14.5 |
| 38x38 | 1.20 | 8.0 |
| 38x38 | 1.40 | 10 |
| 38x38 | 1.60 | 11 |
| 38x38 | 1.80 | 12 |
| 38x38 | 2.00 | 13.5 |
| 38x38 | 2.20 | 14.5 |
| 38x38 | 2.50 | 16.5 |
| 38x38 | 2.80 | 18 |
| 40x40 | 1.50 | 10 |
| 40x40 | 1.60 | 14.5 |
| 40x40 | 2.00 | 18 |
| 40x40 | 2.30 | 19 |
| 40x40 | 2.50 | 22 |
| 40x40 | 2.80 | 25 |
| 50x50 | 1.60 | 14.5 |
| 50x50 | 2.00 | 18 |
| 50x50 | 2.30 | 19 |
| 50x50 | 2.50 | 22 |
| 50x50 | 2.80 | 25 |
| 60x60 | 2.00 | 21.5 |
| 60x60 | 2.50 | 27 |
| 60x60 | 2.80 | 30.5 |
| 72x72 | 1.80 | 23 |
| 72x72 | 2.00 | 25 |
| 72x72 | 2.30 | 29 |
| 72x72 | 2.50 | 32 |
| 72x72 | 2.80 | 35 |
| 72x72 | 3.20 | 40 |
*Note: Specifications are subject to standard manufacturing tolerances. Custom sizes available on request.
Manufacturing & Quality Process
ERW Process
High-frequency electric resistance welding ensures strong, consistent welds with minimal heat-affected zones.
Quality Control
Each pipe undergoes rigorous dimensional checks, weld integrity testing, and visual inspection.
Material Testing
Chemical composition and mechanical properties verified to ensure compliance with standards.
Surface Finish
Black finish provides corrosion resistance and is ready for painting or coating as required.
Applications
Our ERW Black Square Pipes are versatile and suitable for a wide range of applications:
Structural frameworks and supports
Furniture manufacturing
Gates, grills, and railings
Display stands and racks
Machine frames and equipment
Architectural elements
